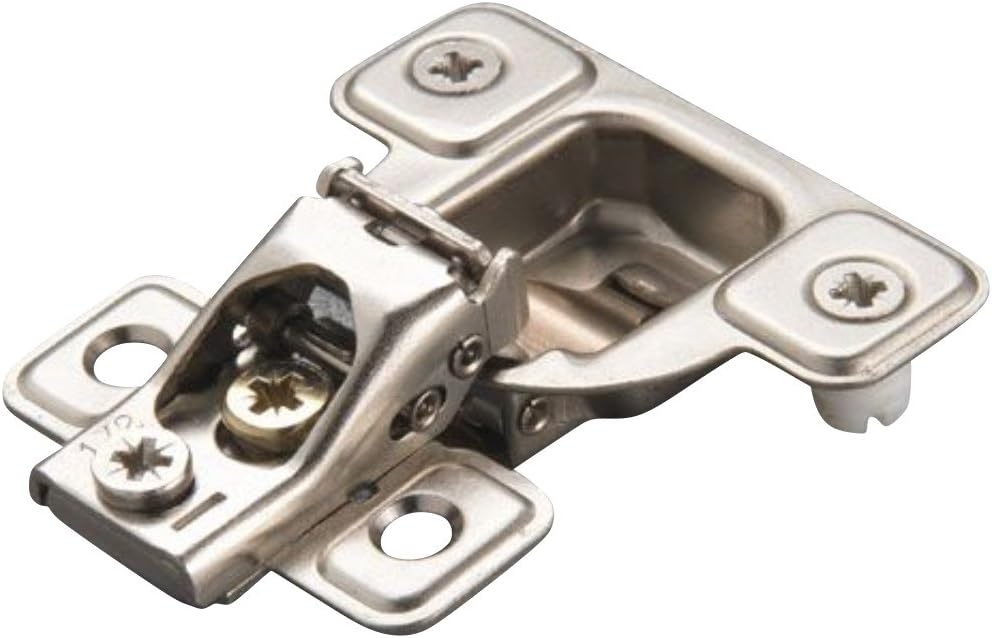

Salice 106 Degree E-Centhree 9/16" Overlay Press in Self Close Cabinet Hinge with 3 Cam Adjustment CSR3699XR (25 Pack)
Product details
| Management number | 209390725 | Release Date | 2026/03/29 | List Price | $25.20 | Model Number | 209390725 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Stamped steel. Cup depth 11 mm (7/16'') Opening 106° degrees. Drilling distance (K) fixed at 2.5 mm (3/32''). Gap between door and frame (L) = 4.6 mm. Reveal) = 8.3 mm for 3/4” square edge doors at 90° opening. Height Cam Adjustment: +/-2mm (3/32") Depth Cam Adjustment: +2.5mm(+7/64"), -0.5mm(-1/64") Side Cam Adjustment: +2.8mm(7/64") , -1.5mm(1/16") Closing Action: Self Close (door will slam shut)
- Salice E-Centhree Self Close Cabinet Hinge MADE IN ITALY
- 3 cam adjustment with 106 Degrees Opening Angle
- Screw in wrap mount cabinet hinge Includes installation screws
- 9/16 in overlay self closing hinge
- Finish: Nickel
| UPC | 614405015820 |
|---|---|
| Brand Name | Rok |
| Hole Count | 1 |
| Item Weight | 1.72 Ounces |
| Finish Types | Nickel |
| Manufacturer | Salice |
| Model Number | CSR3699XR |
| Material Type | Metal |
| Mounting Type | Door Mount |
| Item Dimensions L x W | 0.43"L x 0.43"W |
