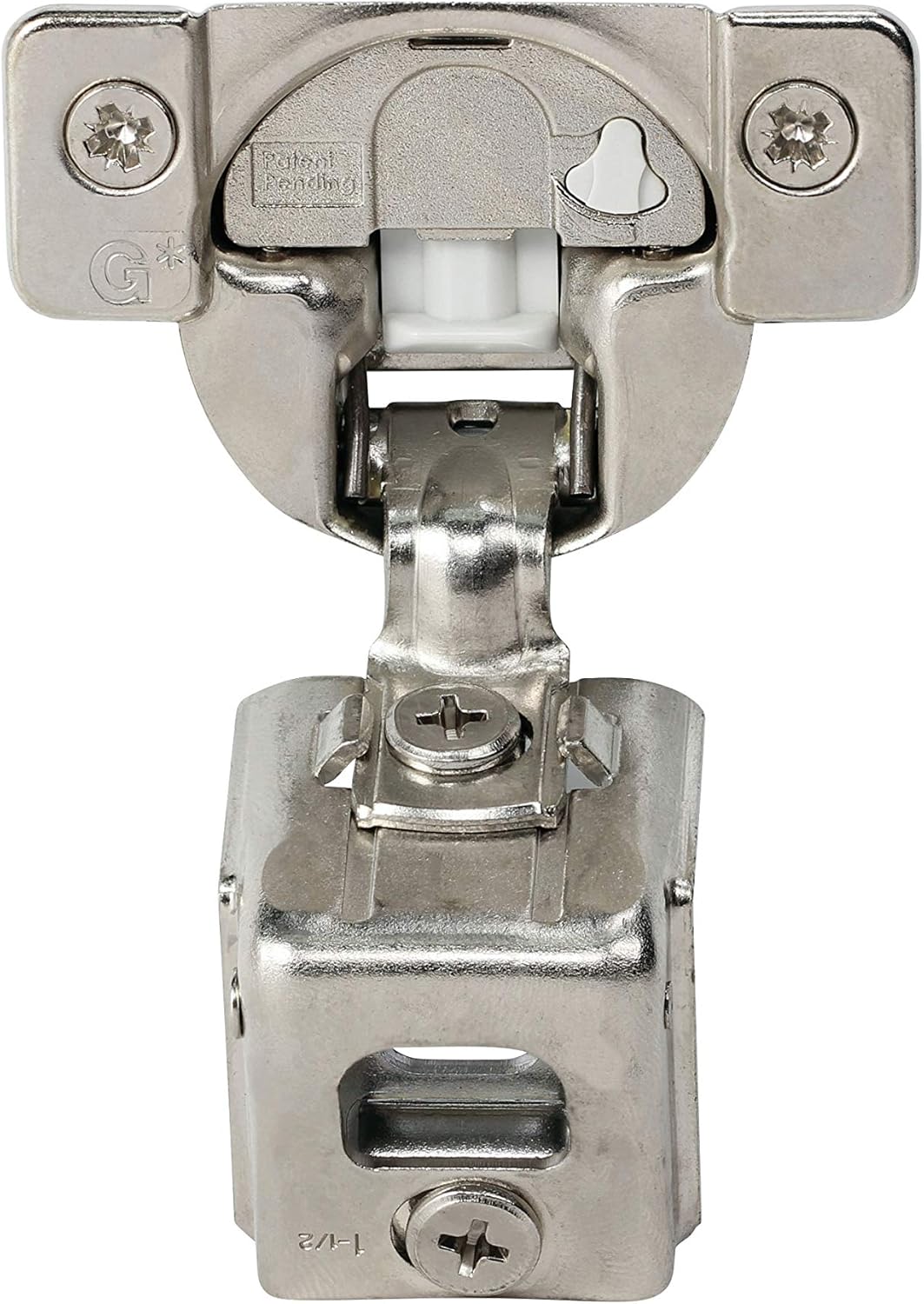

Rok Hardware 50 Pack TEC 864 108 Degree 1-1/2" Overlay 3 Level Soft Close Press-in Compact Cabinet Hinge 02839A-15 3-Way Adjustment 42mm Screw Hole Pattern

MADE IN THE USA ~Face Frame Hinge with integrated Soft-close ~ No additional installation of the Soft-close is required. A three tiered adjustment switch allows various levels of resistance in the damping system. ~ Materal: Steel, TEC hinges feature a solid metal hinge cup. All moving mechanism parts, including pivot pins, linkages and springs are hardened to ensure long-term durability ~ Soft-close damper is premounted in the hinge cup ~ Adjustment switch to regulate closing action ~ One piece hinge and base plate combination ~ 3 dimensional adjustment ~ 11 mm (7/16”) cup drilling depth ~ Front locating tabs position hinge on face frame ~ Cam side adjustment ~ Cam depth adjustment ~ Height adjustment at mounting screw ~ Works with current Grass insertion machinery ~ Includes 1x #10 x 3/4" Wood Screw ~ Side Cam Adjustment: +/-1.5mm(1/16") ~ Height Adjustment: +/-2mm(3/32") ~ Depth Cam Adjustment: +3mm(1/8") ~ Screw hole distance: 42mm (1-21/32") ~ Cup Boring Diameter: 35mm (1-3/8") ~ Hinge Overlay: 1-1/2" ~ Series: TEC 864 ~ Cabinet Type: Face Frame ~ Fixing Type: Press In Dowel ~ Closing Mechanism: Soft Closing ~ Hinge Opening Angle: 108 Degree ~ Base Plate: Wrap Mount ~ Installation Screws: Included

• GRASS TEC 864 Soft Close Cabinet Hinge MADE IN THE USA
• 3-Way Adjustable In and Out Cam Adjustment 108 Degrees Opening Angle
• Screw on wrap around mount cabinet hinge Includes 1x #10 x 3/4" Wood Screw
• 1-1/2 in overlay soft closing hinge with custom 3 level soft close strength switch
